raudit_storage.mmd#

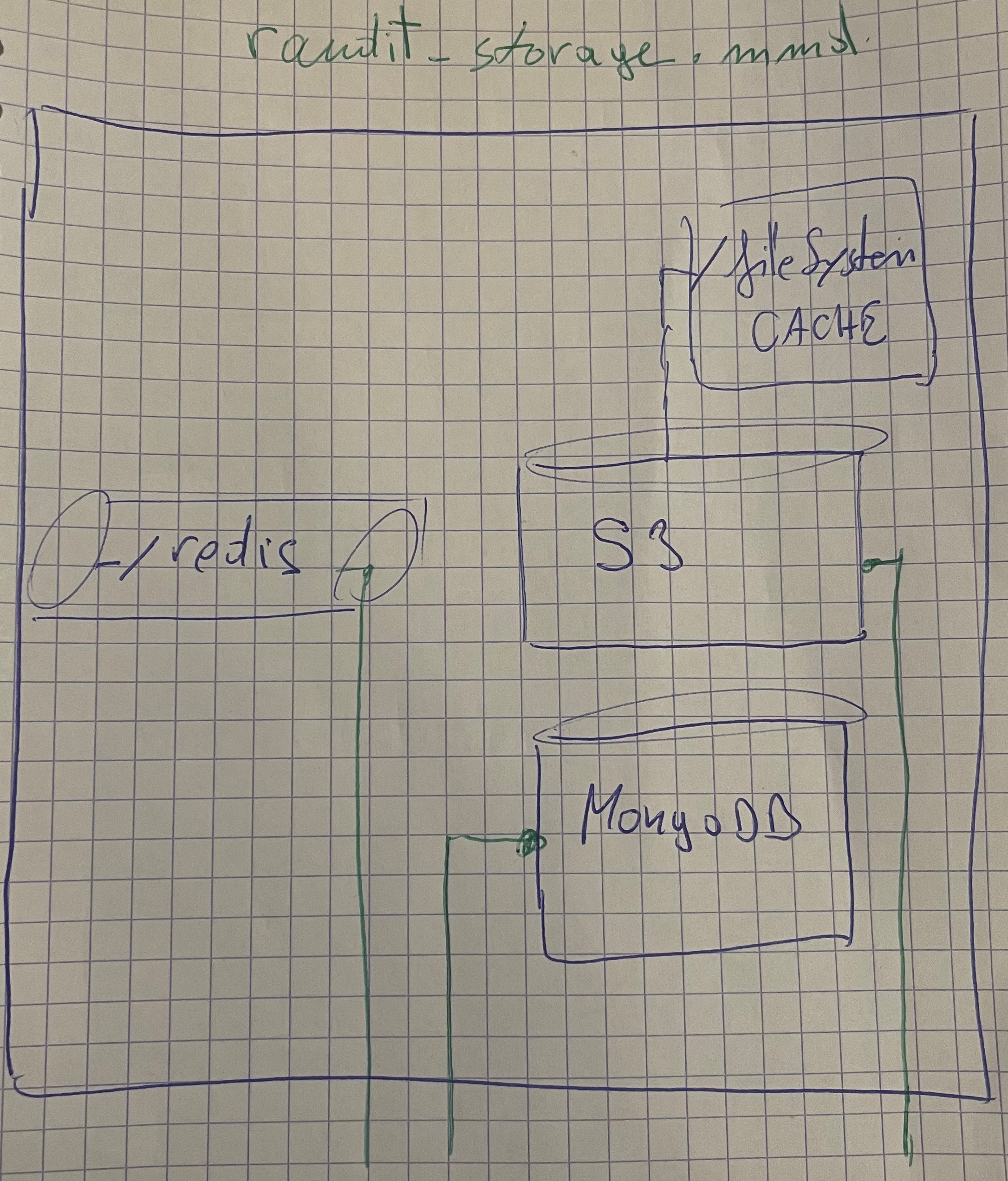

This the draft Luis gave me

../../../_images/sketch.png

Classic diagram (mermaid technology)#

flowchart BT subgraph raudit_storage[raudit_storage.mmd] file_syst[/fileSystem\nCACHE/] s3[(S3)] mongo_db[(MongoDB)] redis([redis]) end file_syst---s3

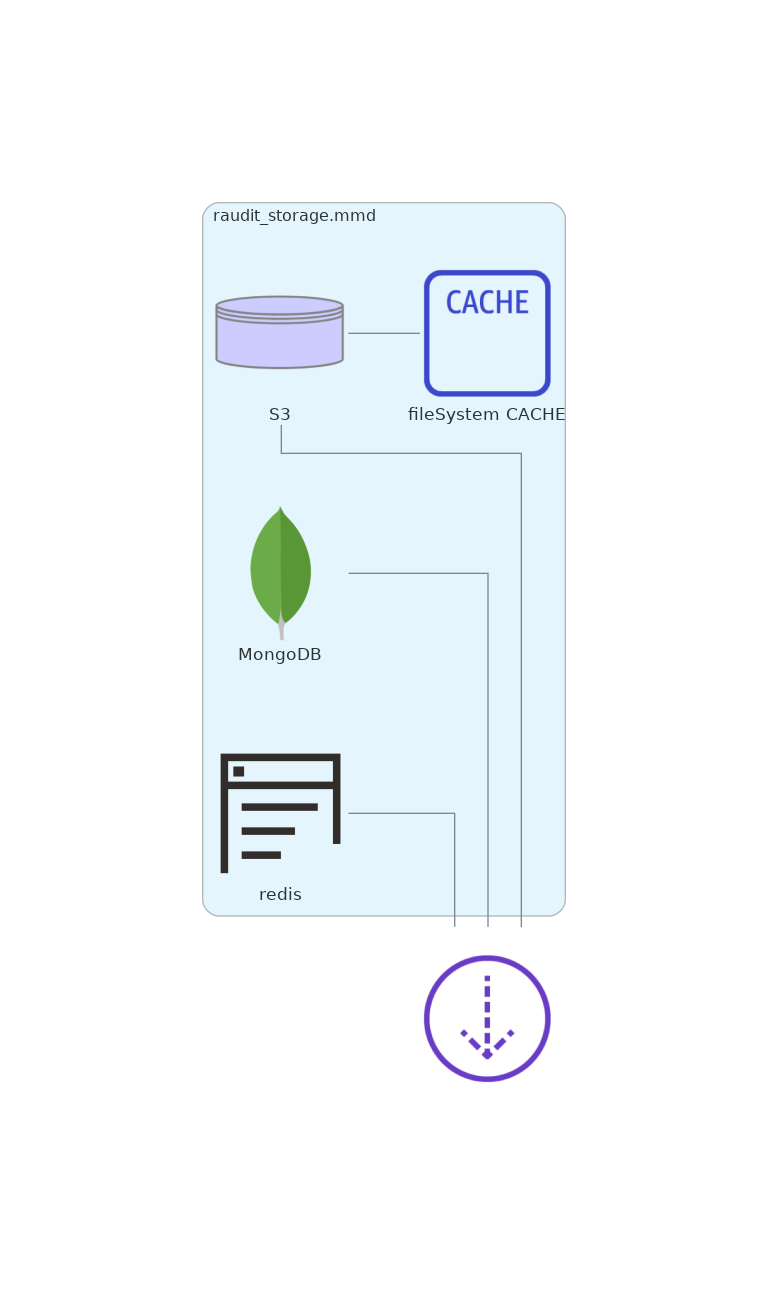

Diagram using python#

../../../_images/diagrams_image.png
from diagrams import Diagram, Cluster, Edge
from diagrams.onprem.database import MongoDB
from diagrams.programming.flowchart import Database
from diagrams.aws.database import ElasticacheCacheNode
from diagrams.aws.network import CloudFrontDownloadDistribution
from diagrams.oci.governance import Audit

with Diagram("",show=False):
    with Cluster("raudit_storage.mmd"):
        mongodb = MongoDB("MongoDB")
        file_syst = ElasticacheCacheNode("fileSystem CACHE")
        redis = Audit("redis")
        s3 = Database("S3")
    out = CloudFrontDownloadDistribution("")
    s3 - file_syst
    s3 - out
    mongodb - out
    redis - out
